Front Terminal Series
Front Terminal (Front Access) Series battery is mainly utilized in numerous applications in the fields of telecommunications, which features on new technology in design, reasonable in structure and occupying the leading position in the same industry of the world., In order to ensure that the power supply is guaranteed online at all times, essential facilities are backed up with high performances battery systems.
Voltage covers : 12V Capacity : 50Ah to 180Ah
Designed floating service life: 12 years for capacity 50Ah to 180Ah @25oC/77oF
General Specifications
|
Model
|
Nominal
Voltage (V) |
Capacity
(Ah) |
Dimension(mm)
|
Weight
Approx (Kg) |
Terminal
|
PDF
|
||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Length
|
Width
|
Height
|
Total
Height |
Type
|
Position
|
|||||
|
OP12550FT
|
12
|
55
|
277
|
106
|
221
|
221
|
17.5
|
T16
|
E
|
 |
|
OP12750FT
|
12
|
75
|
562
|
114
|
189
|
189
|
27
|
T16
|
E
|
|
|
OP121000FT
|
12
|
100
|
506
|
110
|
224
|
239
|
32
|
T16
|
E
|
|
|
OP121050FT
|
12
|
105
|
395
|
110
|
286
|
286
|
32.5
|
T18
|
E
|
|
|
OP121200FT
|
12
|
120
|
551
|
110
|
239
|
239
|
36
|
T18
|
E
|
|
|
OP121250FT
|
12
|
125
|
437
|
108
|
317
|
317
|
40
|
T18
|
E
|
|
|

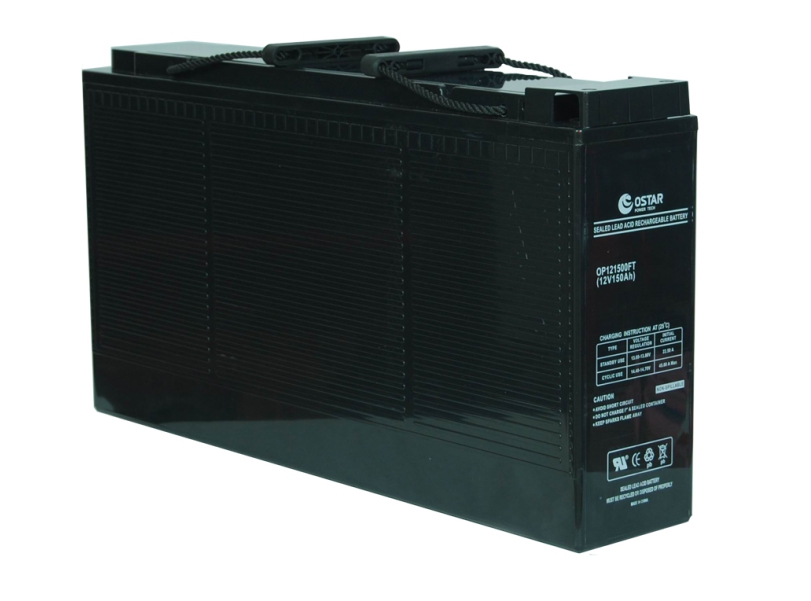

OP121500FT
|
12
|
150
|
551
|
110
|
287
|
287
|
50
|
T18
|
E
|
|
|
OP121550FT
|
12
|
155
|
546
|
125
|
317
|
317
|
55
|
T18
|
E
|
|
|
OP121800FT
|
12
|
180
|
546
|
125
|
317
|
317
|
59
|
T18
|
E
|
|
|
OP121800FT(I)
|
12
|
180
|
560
|
125
|
316
|
316
|
60
|
T18
|
E
|
|
|
OP121800FT(II)
|
12
|
180
|
560
|
125
|
316
|
316
|
53
|
T18
|
E
|
|
Features
● Maintenance-Free Operation
● High consistency
● High Reliability and Safety
● Long service life and Low self Discharge
● Exceptional deep discharge recovery performance
● ABS Containers and Covers(UL94HB),and Flame-retardant ABS (UL94V-0)-optional
● Wide operating temperature range(-40℃/-40°F to 65℃/149°F)
● Flexibility design for multiple install positions
● High consistency
● High Reliability and Safety
● Long service life and Low self Discharge
● Exceptional deep discharge recovery performance
● ABS Containers and Covers(UL94HB),and Flame-retardant ABS (UL94V-0)-optional
● Wide operating temperature range(-40℃/-40°F to 65℃/149°F)
● Flexibility design for multiple install positions
Applications
● Telecommunication
● UPS
● Control system
● Medical equipment
● Communication equipment;
● Computer
● Solar& Wind power system
● Electric Power System(EPS)
● UPS
● Control system
● Medical equipment
● Communication equipment;
● Computer
● Solar& Wind power system
● Electric Power System(EPS)
