GEL Battery Series
GEL battery is a completely maintenance-free battery, as it never needs watering, The oxygen generated inside cells is trapped by special pressurized sealing vents and it moves to the negative plate through tiny fissures or cracks in the gelled electrolyte. The sealing vent is critical to the performance of the GEL battery, the main benefit of GEL battery is suitable for deep cycle application and for extreme ambient temperature or atrocious weather.
Voltage covers: 2V,6V, 12V Capacity: From 33Ah to 3000Ah
Designed floating service life: 12 years for capacity 33Ah to 250Ah,18 years for capacity 300Ah to 3000Ah @ 25 °C/77 °F
General Specifications
|
Model
|
Nominal
Voltage (V) |
Capacity
(Ah) |
External Dimension(mm)
|
Weight
Approx (Kg) |
Terminal
|
PDF
|
||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Length
|
Width
|
Height
|
Total
Height |
Type
|
Position
|
|||||
|
OP61000G
|
6
|
100
|
195
|
170
|
207
|
210
|
17
|
T16
|
A
|
 |
|
OP61500G
|
6
|
150
|
260
|
180
|
245
|
250
|
25.5
|
T19
|
B
|
|
|
OP61800G
|
6
|
180
|
260
|
180
|
245
|
250
|
30
|
T19
|
B
|
|
|
OP61900G
|
6
|
190
|
306
|
169
|
220
|
227
|
31
|
T19
|
B
|
|
|
OP62000G
|
6
|
200
|
323
|
178
|
226
|
230
|
32
|
T19
|
A
|
|
|
OP62200G
|
6
|
220
|
243
|
188
|
275
|
275
|
35
|
T19
|
B
|
|
|
OP12280G
|
12
|
28
|
175
|
166
|
125
|
125
|
9
|
T4/T13
|
C
|
|
|
OP12330G
|
12
|
33
|
195
|
130
|
155
|
180
|
11
|
T8/T16
|
C
|
|
|
OP12400G
|
12
|
40
|
197
|
165
|
170
|
170
|
13.5
|
T9/T16
|
D
|
|
|
OP12550G
|
12
|
55
|
230
|
138
|
208
|
230
|
17.3
|
T9/T16
|
C
|
|
|
OP12600G
|
12
|
60
|
260
|
169
|
211
|
233
|
21
|
T9/T16
|
C
|
|
|
OP12650G
|
12
|
65
|
350
|
166
|
179
|
179
|
22
|
T9/T16
|
C
|
|
|
OP12700G
|
12
|
70
|
260
|
169
|
211
|
233
|
24
|
T9/T16
|
C
|
|
|
OP12800G
|
12
|
80
|
260
|
169
|
211
|
233
|
26
|
T9/T16
|
C
|
|
|
OP12900G
|
12
|
90
|
307
|
169
|
211
|
233
|
29
|
T10/T16
|
C
|
|
|

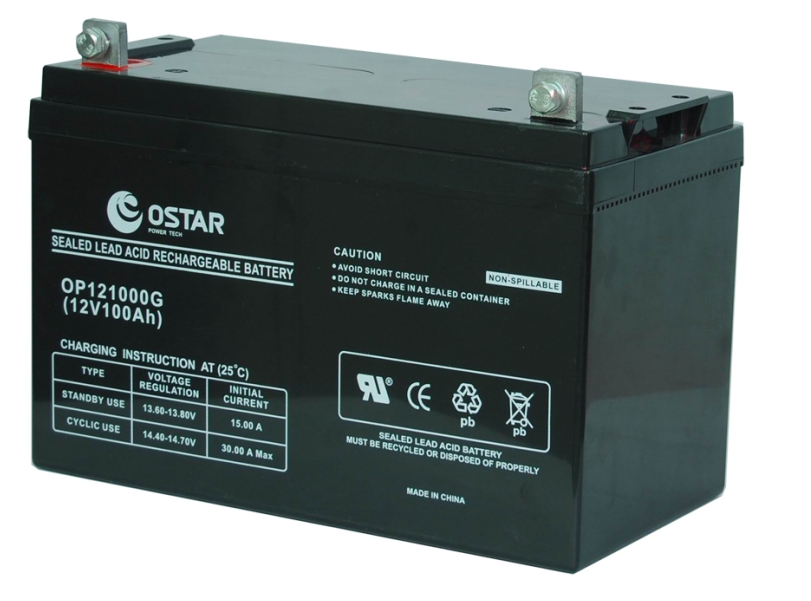

OP121000G
|
12
|
100
|
331
|
171
|
214
|
220
|
32
|
T10/T19
|
C
|
|
|
OP121200G
|
12
|
120
|
409
|
176
|
225
|
225
|
36.5
|
T11/T19
|
C
|
|
|
OP121340G
|
12
|
134
|
342
|
172
|
280
|
285
|
43
|
T11/T19
|
C
|
|
|
OP121500G
|
12
|
150
|
485
|
172
|
240
|
240
|
45
|
T12/T19
|
C
|
|
|
OP121800G
|
12
|
180
|
530
|
207
|
214
|
218
|
55
|
T11/T19
|
E
|
|
|
OP122000G
|
12
|
200
|
522
|
238
|
218
|
222
|
66
|
T11/T19
|
E
|
|
|
OP122500G
|
12
|
250
|
521
|
269
|
220
|
224
|
75
|
T11/T19
|
E
|
|
|
OP12550FG
|
12
|
55
|
277
|
106
|
222
|
222
|
17
|
T16
|
E
|
|
|
OP12750FG
|
12
|
75
|
562
|
114
|
188
|
188
|
27.5
|
T16
|
E
|
|
|
OP121000FG
|
12
|
100
|
507
|
109
|
223
|
238
|
31
|
T16
|
E
|
|
|
OP121050FG
|
12
|
105
|
394
|
109
|
285
|
285
|
33
|
T18
|
E
|
|
|
OP121200FG
|
12
|
120
|
551
|
109
|
239
|
239
|
39
|
T18
|
E
|
|
|
OP121500FG
|
12
|
150
|
551
|
109
|
287
|
287
|
50
|
T18
|
E
|
|
|
OP121550FG
|
12
|
155
|
547
|
125
|
317
|
317
|
56
|
T18
|
E
|
|
|
OP121800FG
|
12
|
180
|
547
|
125
|
317
|
317
|
58
|
T18
|
E
|
|
|
OP121800FG(I)
|
12
|
180
|
560
|
125
|
316
|
316
|
60
|
T18
|
E
|
|
|
OP2100G
|
2
|
100
|
171
|
72
|
206
|
227
|
6.5
|
T16
|
G
|
|
|
OP2150G
|
2
|
150
|
172
|
102
|
206
|
227
|
9
|
T16
|
G
|
|
|
OP2200G
|
2
|
200
|
172
|
111
|
330
|
356
|
14
|
T20
|
G
|
|
|
OP2300G
|
2
|
300
|
171
|
151
|
330
|
356
|
20
|
T20
|
G
|
|
|
OP2400G
|
2
|
400
|
211
|
176
|
330
|
367
|
27
|
T20
|
H
|
|
|
OP2500G
|
2
|
500
|
242
|
172
|
331
|
356
|
32
|
T20
|
H
|
|
|
OP2600G
|
2
|
600
|
301
|
175
|
331
|
356
|
38
|
T20
|
H
|
|
|
OP2800G
|
2
|
800
|
411
|
175
|
330
|
356
|
54
|
T20
|
I
|
|
|
OP21000G
|
2
|
1000
|
475
|
175
|
330
|
356
|
64
|
T20
|
I
|
|
|
OP21500G
|
2
|
1500
|
401
|
351
|
342
|
369
|
98
|
T20
|
J
|
|
|
OP22000G
|
2
|
2000
|
491
|
351
|
344
|
369
|
132
|
T20
|
K
|
|
|
OP23000G
|
2
|
3000
|
712
|
352
|
343
|
369
|
198
|
T20
|
K
|
|
Features
● Maintenance-Free Operation
● High consistency
● High Reliability and Safety
● Long service life and Low self Discharge
● Exceptional deep discharge recovery performance
● ABS Containers and Covers(UL94HB),and Flame-retardant ABS (UL94V-0)-optional
● Wide operating temperature range(-40℃/-40°F to 65℃/149°F)
● Flexibility design for multiple install positions
● High consistency
● High Reliability and Safety
● Long service life and Low self Discharge
● Exceptional deep discharge recovery performance
● ABS Containers and Covers(UL94HB),and Flame-retardant ABS (UL94V-0)-optional
● Wide operating temperature range(-40℃/-40°F to 65℃/149°F)
● Flexibility design for multiple install positions
Applications
● Telecommunication
● UPS
● Control system
● Medical equipment
● Communication equipment;
● Computer
● Solar& Wind power system
● Electric Power System(EPS)
● UPS
● Control system
● Medical equipment
● Communication equipment;
● Computer
● Solar& Wind power system
● Electric Power System(EPS)
