High Temperature Series
High Temperature Battery is developed with advanced AGM valve regulated technology and high purity raw materials,which provide excellent deep cycling capability in high temperature. And help user reduce operating cost substantially. And be the first choice for increasing power demands in remote telecom sites where high temperature and other hard off-grid hybrid applications.
Voltage covers: 6V, 12V Capacity: From 7 to 225Ah
Designed floating service life: 15-18 years
General Specifications
|
Model
|
Nominal
Voltage (V) |
Capacity
(Ah) |
Dimension(mm)
|
Weight
Approx (Kg) |
Terminal
|
PDF
|
||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Length
|
Width
|
Height
|
Total
Height |
Type
|
Position
|
|||||
|
OP62000T
|
6
|
200
|
322
|
178
|
227
|
230
|
32
|
T19
|
A
|
 |
|
OP62200T
|
6
|
225
|
243
|
188
|
275
|
275
|
35
|
T19
|
B
|
|
|
OP1270T
|
12
|
7
|
151
|
65
|
94
|
100
|
2.3
|
T1/T2
|
F
|
|
|
OP12120T
|
12
|
12
|
151
|
98
|
94
|
100
|
3.7
|
T2
|
F
|
|
|
OP12180T
|
12
|
18
|
181
|
77
|
167
|
167
|
5.7
|
T3
|
D
|
|
|
OP12280T
|
12
|
28
|
166
|
175
|
125
|
125
|
9
|
T4/T13
|
D
|
|
|
OP12330T
|
12
|
33
|
195
|
130
|
155
|
180
|
11
|
T8/T16
|
C
|
|
|
OP12400T
|
12
|
40
|
197
|
165
|
170
|
170
|
14
|
T9/T16
|
D
|
|
|
OP12650T
|
12
|
65
|
350
|
166
|
179
|
179
|
22
|
T9/T16
|
C
|
|
|
OP12800T
|
12
|
80
|
260
|
169
|
211
|
233
|
25
|
T9/T16
|
C
|
|
|
OP12900T
|
12
|
90
|
307
|
169
|
211
|
233
|
29
|
T10/T16
|
C
|
|
|
OP121000T
|
12
|
100
|
330
|
171
|
214
|
220
|
32
|
T10/T19
|
C
|
|
|
OP121000T(I)
|
12
|
100
|
395
|
110
|
286
|
286
|
35
|
T10/T19
|
E
|
|
|
OP121200T
|
12
|
120
|
409
|
176
|
225
|
225
|
37
|
T11/T19
|
C
|
|
|
OP121500T
|
12
|
150
|
485
|
172
|
240
|
240
|
47
|
T12/T19
|
C
|
|
|
OP121700T
|
12
|
170
|
546
|
125
|
317
|
317
|
60
|
T12/T19
|
E
|
|
|
OP121800T
|
12
|
180
|
530
|
207
|
214
|
218
|
57
|
T11/T19
|
E
|
|
|

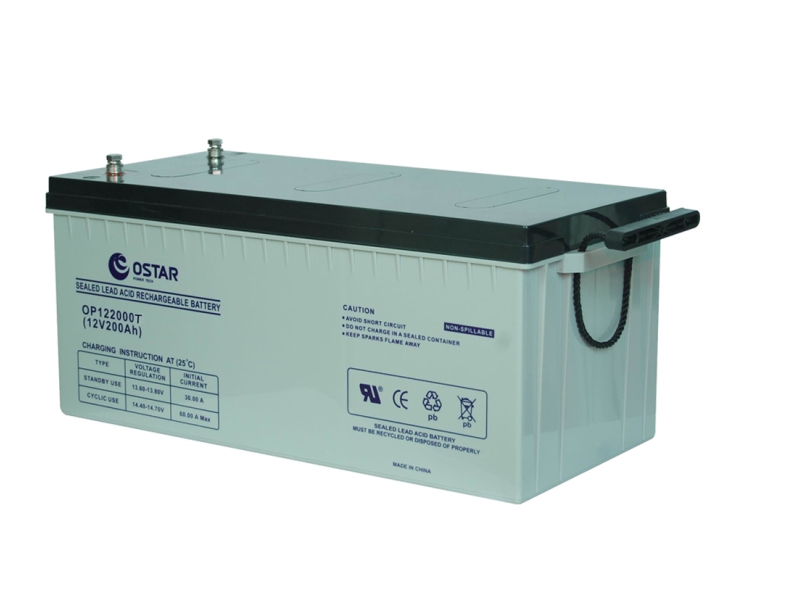

OP122000T
|
12
|
200
|
522
|
238
|
218
|
222
|
66
|
T11/T19
|
E
|
|
Features
● High consistency and reliable standby service life
● advanced anti-corrosion grid technology
● Optimized active material for high temperature conditions
● Wide operating temperature range:-40°C to +80°C
● Excellent deep cycling performance
● Exceptional deep discharge recovery
● Superb safety and high reliability
● Flame retardant ABS case (UL94 V-0, optional)
● Low self-discharge rate
● advanced anti-corrosion grid technology
● Optimized active material for high temperature conditions
● Wide operating temperature range:-40°C to +80°C
● Excellent deep cycling performance
● Exceptional deep discharge recovery
● Superb safety and high reliability
● Flame retardant ABS case (UL94 V-0, optional)
● Low self-discharge rate
Applications
● Hybrid telecom remote base stations
● Renewable energy wind & solar sites
● Grid frequency leveling systems
● All back-up applications where grid reliability is poor
● Extreme environment off-grid
● Solar lighting equipment
● Renewable energy wind & solar sites
● Grid frequency leveling systems
● All back-up applications where grid reliability is poor
● Extreme environment off-grid
● Solar lighting equipment
