Rack Mounted Lithium Battery
This series of lithium battery LiFePO4 systems are high-tech products developed by OSTAR.it is an energy storage module based on innovative Li-ion technology,and be especially designed as backup batteries for telecommunication equipment and Home energy system with advanced features: high power density, small size,long lifespan, resistance to high temperature, wide range of charging voltage, fast charging,intelligent management, and software anti-theft,which can be paralleled with lead-acid battery directly, which helps carriers fully and reuse the legacy batteries when site expands to save cost.the cycle life can be 3500 to 4000 cycles @0.5C,80% DOD 25+/-5°C,and design life 20 years.
| Model | Nominal Voltage (V) |
Capacity (Ah) |
Dimensions（mm） | Weight Approx (Kg) |
Terminal | Max. | ||||
| Length | Width | Height | Total Height | Type | Position | Current(A) | ||||
| LFP4810 | 48 | 10 | 442 | 290 | 44 | 44 | 9.5 | M6 | / | 10 |
| LFP4820 | 48 | 20 | 442 | 300 | 88 | 88 | 14 | M6 | / | 20 |
| LFP4830 | 48 | 30 | 442 | 380 | 88 | 88 | 23 | M6 | / | 30 |
| LFP4840 | 48 | 40 | 442 | 430 | 88 | 88 | 25 | M6 | / | 40 |
| LFP4850 | 48 | 50 | 442 | 440 | 133 | 133 | 28 | M6 | / | 50 |
| LFP4880 | 48 | 80 | 442 | 480 | 177 | 177 | 40 | M6 | / | 100 |

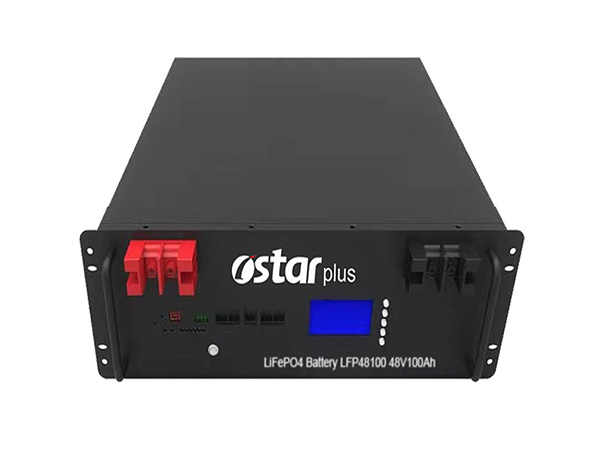

| LFP48100 | 48 | 100 | 442 | 420 | 177 | 177 | 43 | M8 | / | 100 |
| LFP48100(I) | 48 | 100 | 442 | 420 | 133 | 133 | 43 | M8 | / | 100 |
| LFP48150 | 48 | 150 | 442 | 550 | 177 | 177 | 60 | M8 | / | 150 |
| LFP48150(I) | 48 | 150 | 442 | 550 | 133 | 133 | 60 | M8 | / | 150 |
| LFP48200 | 48 | 200 | 442 | 620 | 177 | 177 | 78 | M8 | / | 200 |
| LFP51100 | 51.2 | 100 | 442 | 420 | 177 | 177 | 45 | M8 | / | 100 |
| LFP51150 | 51.2 | 150 | 442 | 550 | 177 | 177 | 63 | M8 | / | 150 |
| LFP51200 | 51.2 | 200 | 442 | 620 | 177 | 177 | 83 | M8 | / | 200 |
Features
●Intelligent software anti-theft design
●Easy maintenance with SOC(state of charge) and SOH(state of health) detection
●Positive electrode made of LiFePO4 (LFP), ensuring high safety and a long service life.
●High compatibility,compatible with a variety of communication power supply devices ,such as various low-power UPS or other inverter devices
●Maintenance-free design, fitting in a 19-inch communications cabinet.
●High reliability,multiple automatic protection function through intelligent BMS system,Avoid overcharge, over discharge, short circuit, which ensures high reliability of the battery pack and enables real-time monitoring of battery data over a long distance.
●Low internal resistance, with efficient internal balance of the battery control circuit.
●Wide operating temperature range: -20°C~60°C
●Over 90% of discharge efficiency
●Support for parallel connection of battery packs for more energy
●RS485，RS232 ,CAN communication port.
●IEC62619, UL1642, UN38.3 certification for cell,UN38.3 certification for system.
●Automated temperature regulation function: attach
heating sheet at the bottom of battery, set up cooling fan
in the case. System will automatically turn on the heating
function when ambient temperature is too low, and start
the cooling fan when the temperature is too high.
Applications
●Communication equipment rooms
●Outdoor base stations
●Data centers,
●Computer room of financial organizations
●Computer room of rail transportation
●Wind-solar hybrid systems
●BESS – Containerized ESS
●Energy storage system in areas without power supply
